Description

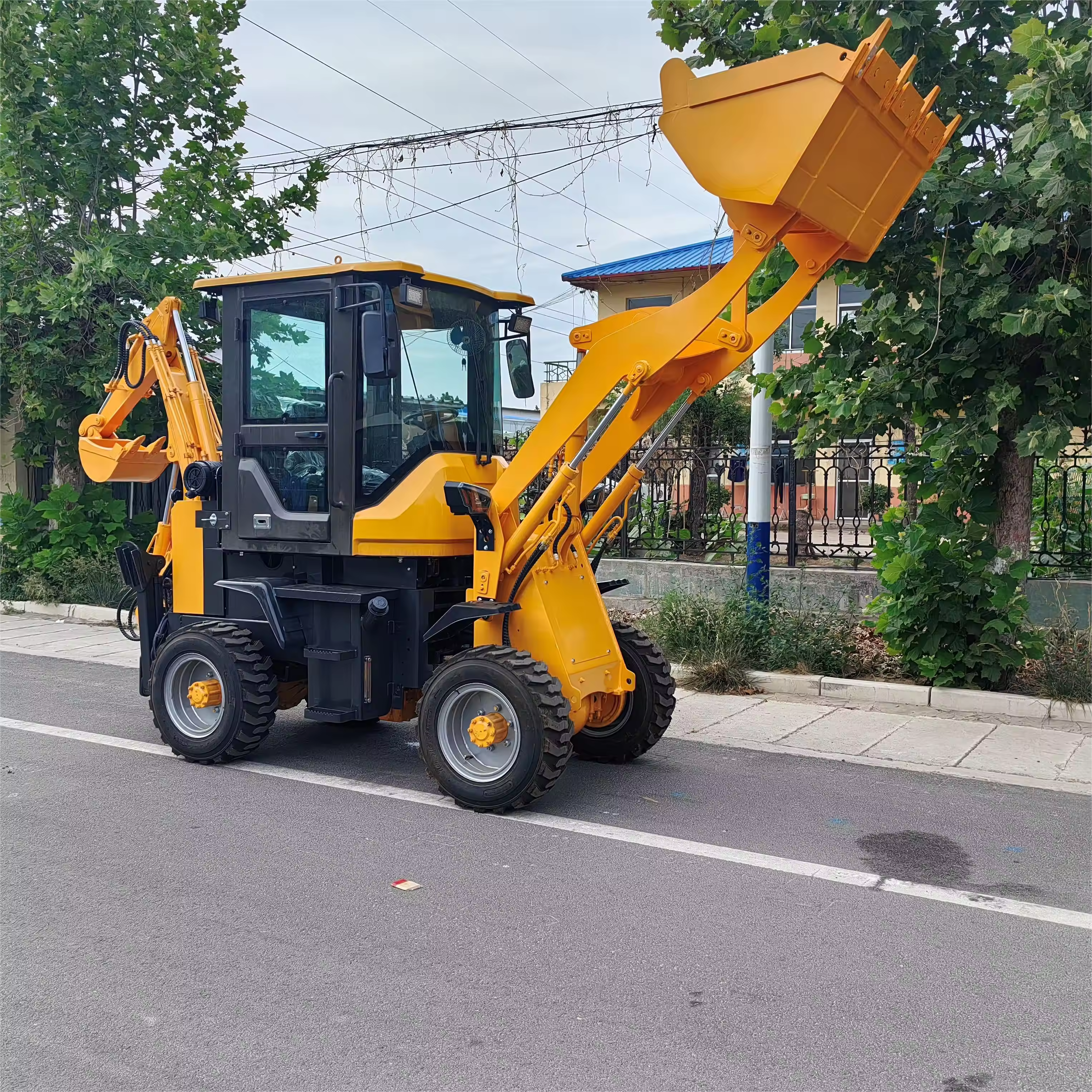

Backhoe
Loader
◉ Spacious and comfortable cab
◉ Accurate pilot operating system
◉ Multiple high-performance engine options
◉ Excellent quality and reliability
The features:
1. It has the advantages of fast operation speed, high efficiency, good mobility, and easy operation;
2. It is widely used in construction projects such as highways, railways, buildings, hydropower, ports, mines, etc. It can also be used for bulldozing, lifting, and loading and unloading of other materials such as wood when different auxiliary work devices are installed[
2F+2R
Gears
37 kw
Rated power
3400KG
Loading Lifting Capacity
Product Specifications
| Model | B10-20 |
| Overall Weight(kg) | 3400KG |
| Engine Model(kw) | Yunnei 37kw |
| L*W*H(mm) | 5500*1750*2650 |
| Wheel Base(mm) | 2070mm |
| Min. Ground Clearance(mm) | 250mm |
| Turning Radius(mm) | 3500mm |
| Max.dumping height(mm) | 2800 |
| Max unloading distance(mm) | 800 |
| Loading bucket width(mm) | 1800 |
| Loading bucket capacity(m) | 0.5 |
| Max.loading lifting height(mm) | 3300 |
| Maximum rising force(kn) | 36 |
| Max.digging depth(mm) | 2000 |
| Max.dumping height(mm) | 1800 |
| Max.digging radius(mm) | 2700 |
| Bucket width(mm) | 400 |
| Bucket capacity(m³) | 0.1 |
| Max.height(mm) | 3300 |
| Max. digging force(kn) | 25 |
| Excavator rotation angle(°) | 180 |
Flange Cylinder
OEM/ODM
EPA/CE Engine
CE / ISO / EURO5 / EPA / SGS / ECM engine
Accessories
Equipped With Air Conditioning
Shipping
Provide the shipping
Color & Logo
Customize Color and logo
24 Service
Welcome to initiate an inquiry! Get exclusive services and exclusive prices.
Optional Attachment
Shipping Service
Certificate
Factory Introduction
Liton Machinery Group is located in the world-famous Mountain Tai. We have own factory and sales team. Our main product include mini excavators, skid steel loaders ,wheel loaders and backhoe loaders etc. Our mini excavators are compact and flexible, ideal for various confined workspaces. Skid steer loaders show great mobility and versatility. Wheel loaders are known for their strong loading ability and stable performance.
